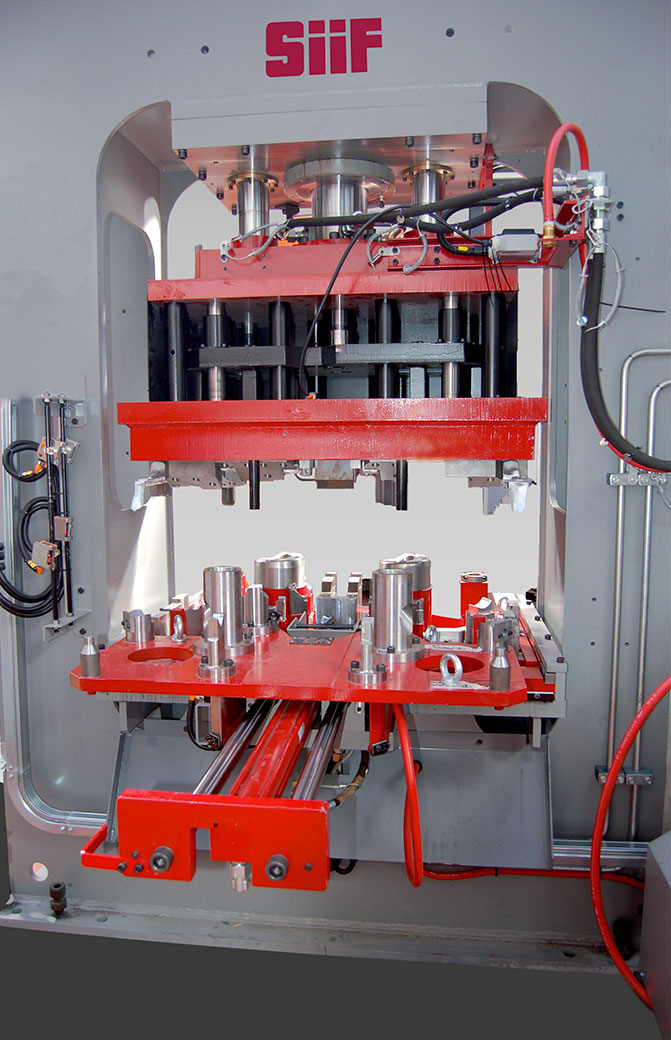

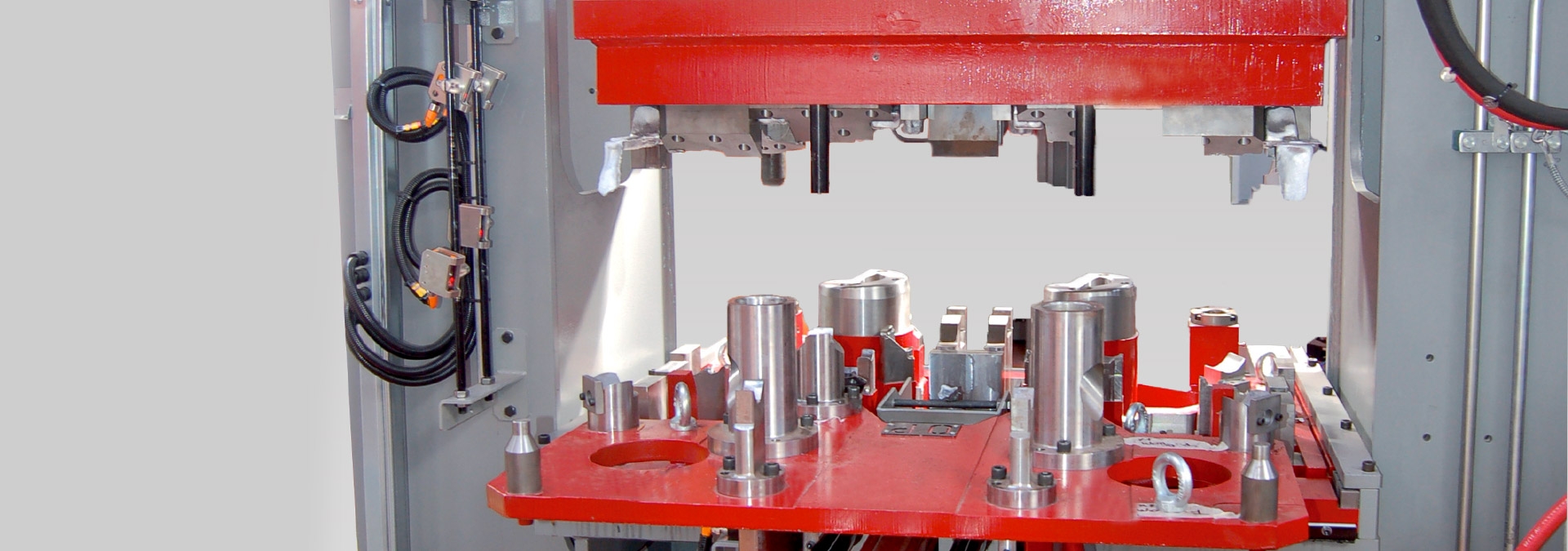

Shuttle trim machine

SIIF has developed a complete range of shuttle trimming machines for single plane trimming.

  • Used for trimming brake castings, knuckles, manifolds, brackets etc. either in iron or aluminum.
  • They can process up to 500 p/h (2 castings at a time) depending on the height and size of the part.

Following options are available:

  • Automatic casting unloading
  • Scrap conveyor
  • Gantry for trim die change
  • Link to testing line
  • Side trim
  • 180° turn over of part support on shuttle (for pressure die cast)



Download the datasheet

Technical data

Force (T) 30 60 80 150
Opening /mm 900 900 to 1320 900 900 to 1130
Maxi casting size /mm 300 x 450 x ht200 300 x 450 x ht200 300 x 450 x ht200 300 x 450 x ht200
Number of cycles /h 200 200 200 200
Average energy /kW 18 22 30 45
