Vision system

Location for robot connection

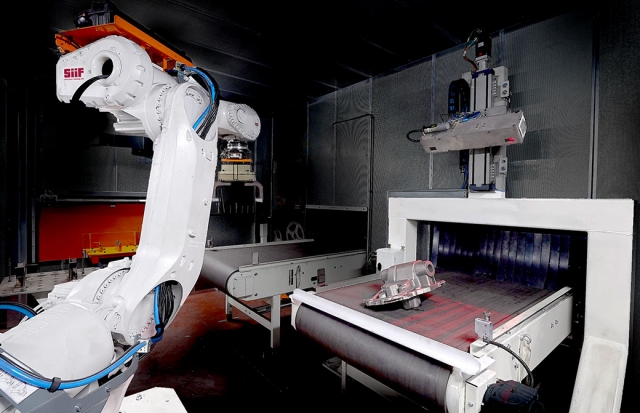

  • Static part with 2D, 3D triangulation vision (scan of the casting, fixed or moving camera) and 3D stereoscopic vision.

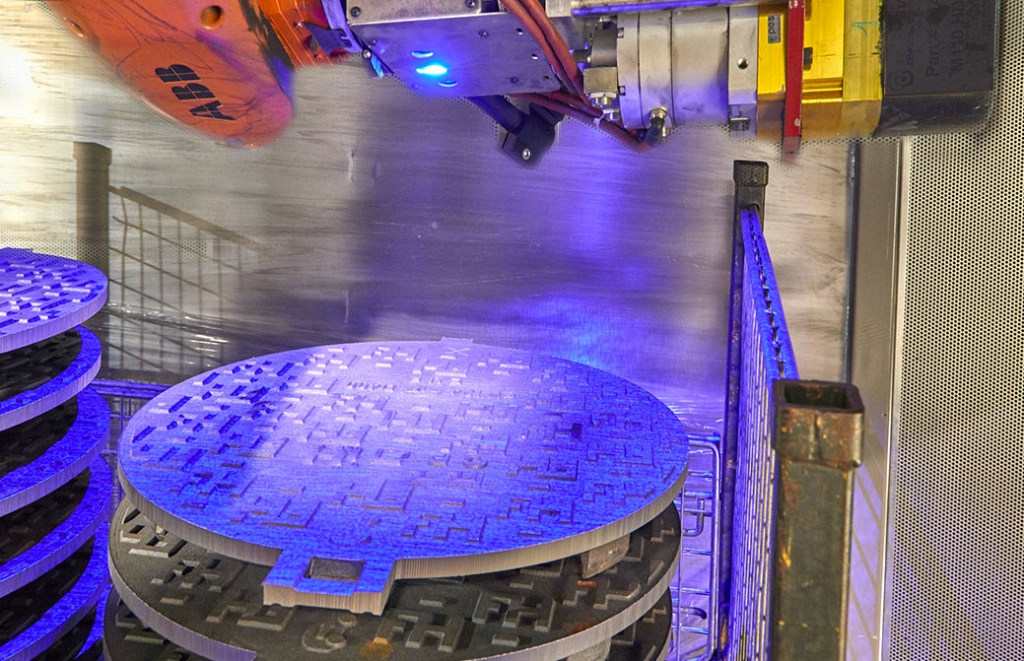

  • Static part during pallet unloading with 3D stereoscopic vision system.
  • Moving part with 2D vision system (robotic picking by tracking).



Simple missing/present type check, casting type/reference, correct placement, etc.

  • 2D-3D vision sensor.
  • 2D vision system.



Diameter, spacing, positioning type check on the part, etc.

  • Vision sensor for simple measurements.
  • 2D-3D vision system.
  • Profile meter with 3D reconstruction option.
  • Tipper bulk unloading with 3D volumetric sensor: IFM.

SiiF integrates the following brands: COGNEX, SICK, KEYENCE, ENSENSO (HALCON software), IFM, etc.



Download the datasheet
